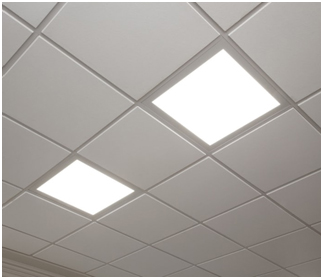

Asmi Glass Fiber Acoustic Ceiling Tiles:-
We have with us soft fiber acoustic ceiling tiles which are made of raw material , solely procured from India and have excellent sound absorbing traits . Apt for usage in cinema halls , conference rooms & other high acoustic spaces , this comes under very decent budget as well. Standard colors are white & black , but can be customized as per requirements.
- Fire (Class) – 1 & P
- Acoustics up to – NRC 0.9
- Thermal conductivity (W/mk)– 0.066
- Climate (°C, RH) – 40, 95
- Light reflectance (%) – 85
- Green (VoC, RC %) – Low, 35
Standard sizes are 595mm x595mmx 15/20mm and 1195mm x295mmx15mm

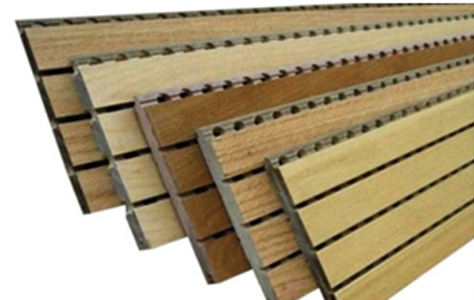

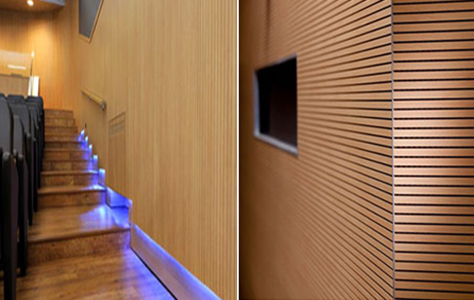

Asmi Acoustic Wooden Slats
| Sr No | Features | DIMENSIONS (mm) |
|---|---|---|
| 1 | Thickness | 15/ 16/ 18 |
| 2 | Size | 2440 x 128 mm and 2440 x 192 mm |
| 3 | Edge | Tongue & Groove |
| 4 | Weight | 12-15 Kg/ m2 |
| 5 | Density | MDF 600Kg/ m3, HDF 800Kg/ m3 |
| 6 | Core | MDF/ HDF |
| 7 | NRC | 0.8 WITH 50MM SYNTH |
| 8 | Installation | 50 mm GI stud or CC18 Aluminum Channel |
| 9 | Maintenance | Wet/Dry Wipe |
| 10 | Color | Available in Various Colors |

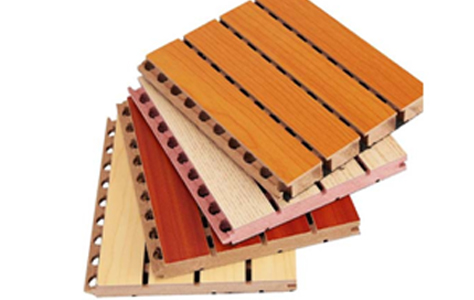

High density MDF or HDF boards are used in making Perforated Wooden Wall Panels which are not only aesthetically appealing but have also sound absorbent features that meet the needs of acoustic insulation. They are well suited for auditoriums , stadiums , meeting rooms , studios & conference halls. These panels have groove on the front side with 10mm dia round holes covered with black acoustical fleece on the back side. The unique design patterns come in plethora of shades to give a rich ambience to your interiors.

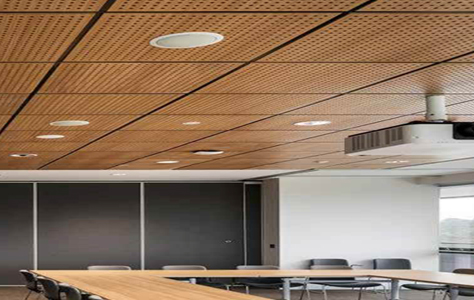

Asmi Acoustic Wooden Ceilings
| Sr No | Features | Dimension (In mm) |
|---|---|---|
| 1 | Thickness | 8/ 10/ 12/ 15 |
| 2 | Size | 595 X 595 mm and 595x 1195 mm |
| 3 | Edge | SQUARE & TEGULAR |
| 4 | Weight | 8-15 Kg/ m2 |
| 5 | Core | MDF/ HDF |
| 6 | NRC | 0.8 with acoustical backing |
Made from best quality MDF or HDF boards form renowned brands like –Action Tessa & Century Perforated Wooden Ceiling Panels have holes on the front side with 8/10/12 mm dia with acoustical fleece on the back side , thereby providing sufficient surface for excellent sound absorption along with royal look of wood .These panels are laid on Asmi T grid suspension system which is made from high quality GI & gives adorable look. The panels can be removed for maintenance purposes of overhead services.

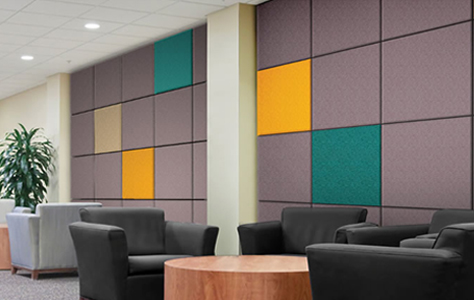

Asmi Acoustic Fabric Covered Panels

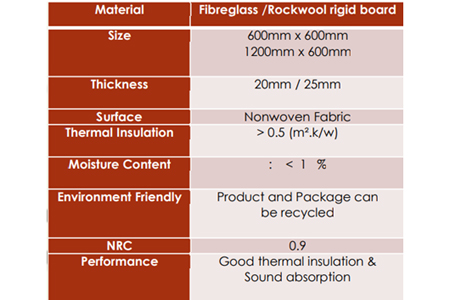

The ASMI glass fibre fabric covered panels are made with high-density fiberglass as a core to absorb maximum sound absorption. These panels with Class ‘A’ fire rating increase speech intelligibility and sound quality in applications for restaurants, recording studios, auditoriums, conference rooms, etc. These are available in variety of finishing choice to meet acoustic and aesthetic needs of interiors as designed by Architect and consultants.

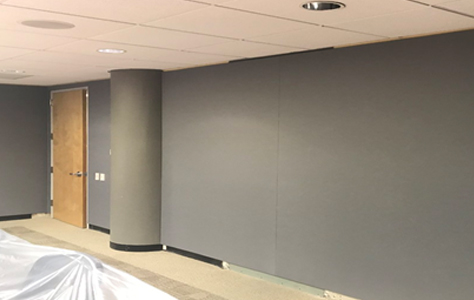

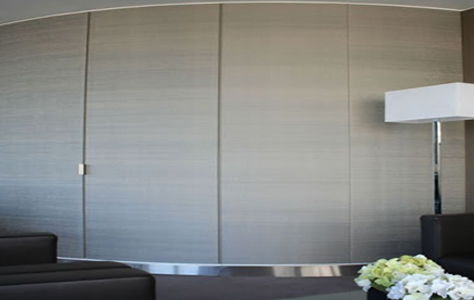

Asmi Acoustic Stretch Fabric Paneling
Fabric is one of the key & the oldest of ingredients being used in the Acoustic Industry for long time now . With the Asmi Stretch Fabric system of Acoustics , one can not only play with the a huge variety of color & texture options which are available in Fabric but at the same time can put the most creative of designs onto walls .
The system comprises of 3 main components:-
1) ASMI Strut PVC tracks – Manufactured from best grade PVC , our struts are FR Grade , optimally flexible & lasts long to execute best of designs in fabric paneling.
2) ASMI Poly-Fiber wool- Poly-wool also known as Synthetic wool due to its sound trapping properties provides a perfect absorption of sound waves & reverberations. This part of the system gets hidden as it is covered by the Fabric & it is stick to the surface using suitable adhesive. It comes in different thicknesses & density options to meet the acoustic requirements of the space.
3) ASMI ACOUSTIC Fabric range:- At ASMI , we have a huge variety of shades & textures in terms of design options procured from the industry leaders of all times. These fabrics suit the requirements of all work spaces from board rooms to banquet halls , from theatres to multiplexes , from auditoriums to conference halls. It’s the perfect beauty with acoustics.
